Low Volume Aerosol Sampler DPA-14 Rental

with automatic filter changer for autonomous, continuous sampling according to the standard EN12341



Description

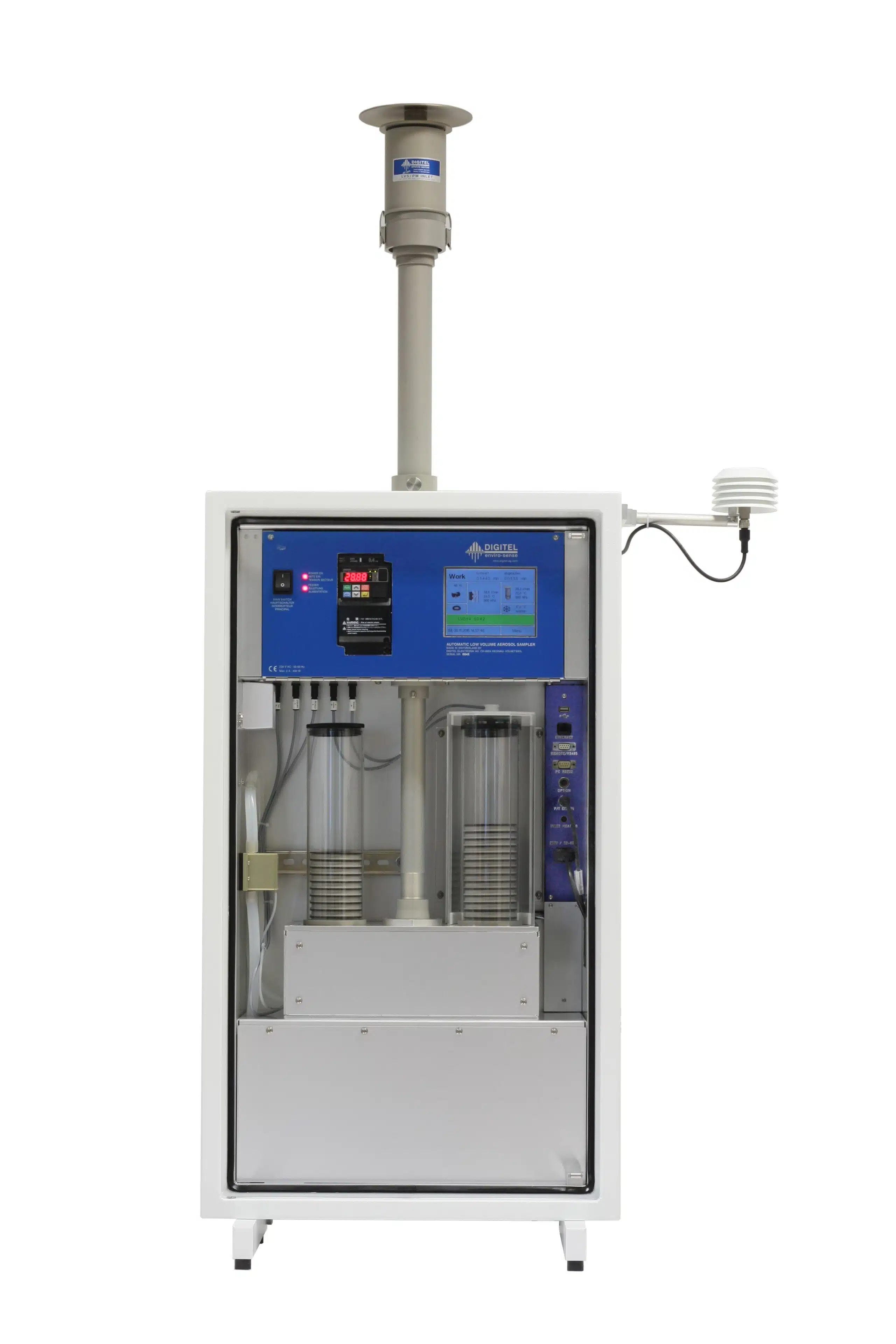

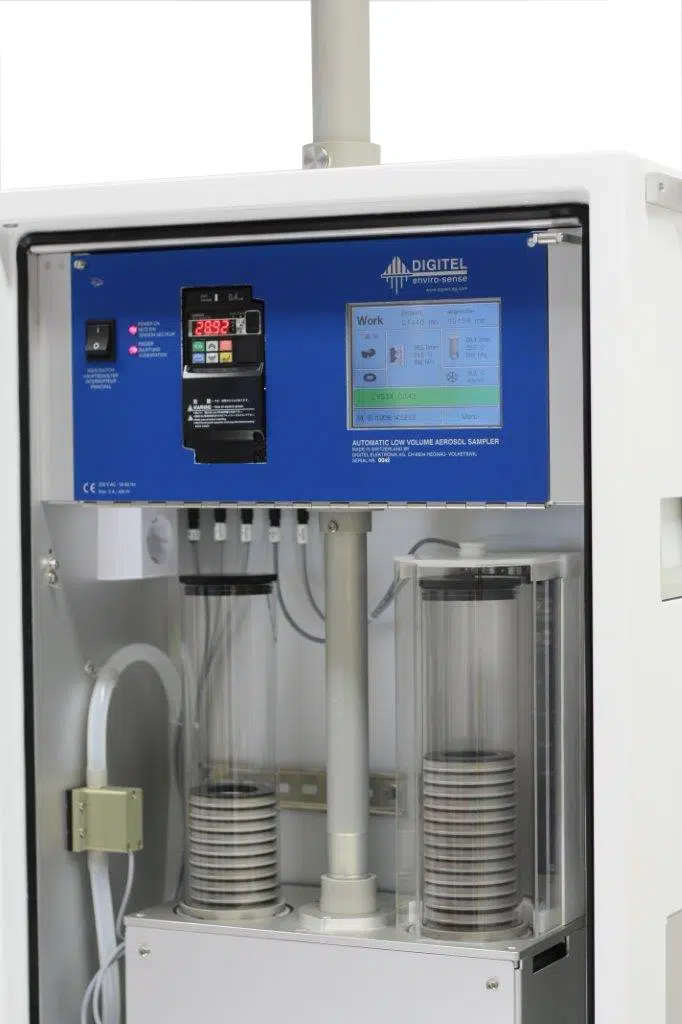

DIGITEL Low Volume Samplers DPA-14 are fully automatic systems to sample dust and aerosol particles for later assessment and analysis (gravimetric and analytical determination) in accordance with EN12341. The sampler operation range in standard execution is 5 to 50 litres per minute (0.3 to 3m³/h). The DIGITEL LVS DPA-14 has a magazine of 30 filters stretched in filter holders. They are automatically changed to the flow position at the pre-set time. The devices can be integrated in automatic monitoring systems via various interfaces. The field housing of the DIGITEL LVS DPA-14 is suited for outdoor installation. It is easy to transport and because of a good sound insulation very quiet. Superior workmanship in sampler mechanics backed by the latest technical and electronic control guarantee a long lifetime and absolutely reliable operation.

Specifications

Sampling
  • Flow rate: 5 – 50 l/min (Rotameter)
  • Filter: round filters of d = 47 mm, flowing area d = 40 mm

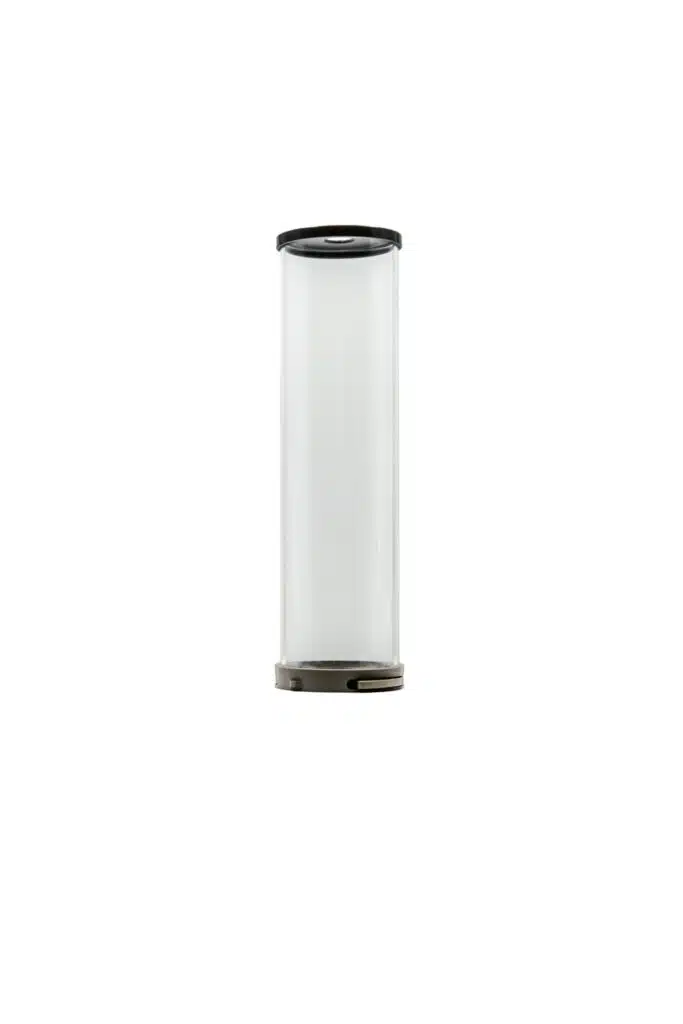

  • Filter changer capacity: 30 filter in filter magazine plus one in sampling position
  • Application range: -40° to 50° C; 0 % to 95 % RH
Time programs
  •  Work, Pause (0 to 59’999 minutes each),
  • start time adjustable, using date and time
  • different sampling cycles programmable
Accuracy
  • Constancy of sample flow: <2%
Operating Data
  • Power supply: 230V AC / 50-60 Hz; max. 2A/400 W
  • Cooling capacity of compressor: 360 W (Option)
  • Mean life cycle suction unit: > 16’000 h
  • Negative pressure: Max. capacity 800 mbar, limited to -450 hPa for filter protection
  • Sensors: Ambient and flow pressure, temperature, humidity
Interfaces
  • RS232C, USB, Ethernet, RS485
  • Interface protocols: DIGITEL, Bayern-Hessen, AK, TCP/IP,HTTP, FTP
  • Internal memory: 16MB
Inlets
  • TSP, PM10, PM2.5 and PM1
Materials
  • Coated aluminium, stainless steel, POM, PTFE, NBR
  • Material of sampling line: EMATAL coated aluminium
Dimensions:
  • Field housing (without inlet) 526x 235 x 1000 mm, 40 kg (43 kg with cooling), protection class IP54
  • Cabinet housing (without inlet) 448 x 204 x 922 mm, 32 kg

Key Features

  • EN12341 compliance verified by TüV Süd
  • Lightweight but robust and weatherproof
  • Low energy consumption
  • Low maintenance cost
  • Easy programming with touchscreen
  • Easy filter handling
  • Software for easy EN12341 tests
  • TSP, PM10, PM2.5, PM1 inlets

Options

  • SMS module for status and messages
  • LTE Router
  • Heating
  • Customer-specific interface protocols
  • External meteorological data collection (e.g.: wind direction and wind controlled measurement)
  • Customer-specific functions
