Low Volume Aerosol Sampler DPA-14 DL

with two sampling lines and automatic filter changers for autonomous, continuous aerosol sampling according to the standard EN12341



Low Volume Aerosol Sampler DPA-14 DL

Key Features

  • Autonomous, continuous sampling
  • Automatic filter changers for 2 x 30 filters
  • Two completely independent sampling lines
  • Constant and precise flow
  • Flow range 15 – 50 l / min
  • Filter diameter 47 mm
  • PM2.5 and PM10 measurements according to EN12341
  • All components used from EN12341 type tested DPA-14 standard version
Good to Know
  • Light weight but robust and weather proof (field housing)
  • Low energy consumption, low energy cost
  • Low maintenance cost
  • Maintenance free blowers
  • Easy programming with touchscreen
  • Easy filter handling
  • Software for EN12341 tests

Description

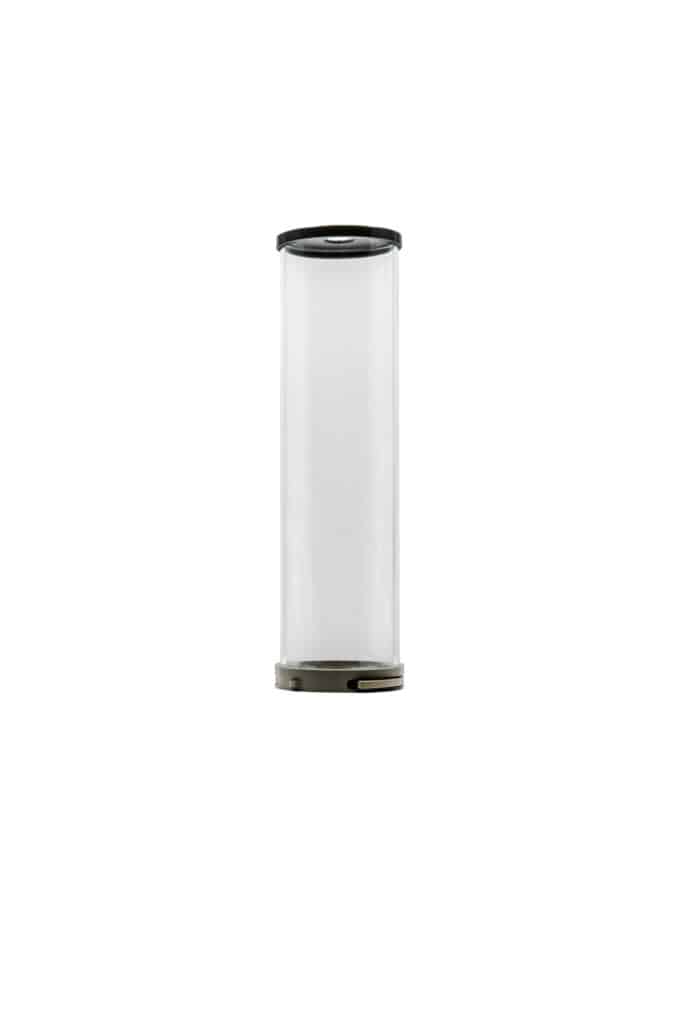

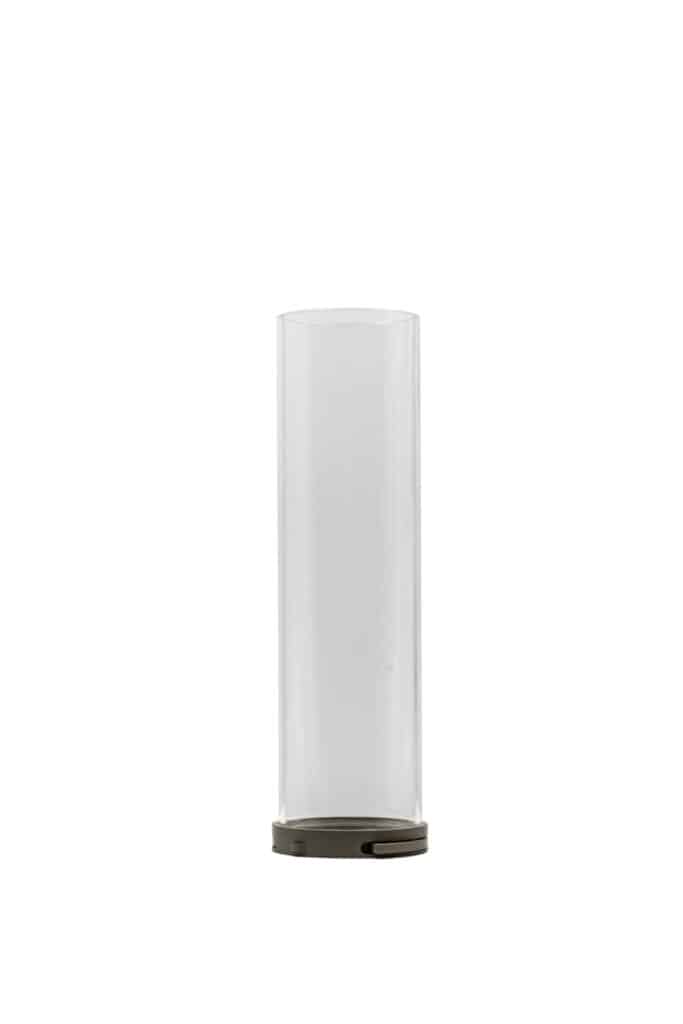

The DIGITEL Low Volume Sampler (LVS) DPA-14 Double Line (DL) is a fully automatic system to sample dust and aerosol particles for later assessment and analysis (gravimetric and analytical determination) in accordance with EN12341. It features two completely independent sampling lines with automatic filter changers for parallel sampling of PM10 and PM2.5 inlets.  The sampler’s operation range in standard execution is 15 to 50 litres per minute (0.9 to 3m³/h). The DIGITEL LVS DPA-14 DL has two magazines of 30 filters each stretched in filter holders for up to 4 weeks of daily sampling of PM10 and PM2.5 samples. They are automatically changed to the flow position at the preset time.  The cabinet housing of the DIGITEL LVS DPA-14 DL is suited for 19’’ rack installation or can be installed on the floor or on a table in a measurement station. An additional noise baffler allows extremely silent operation. Superior workmanship in sampler mechanics backed by the latest technical and electronic control guarantee a long lifetime and absolutely reliable operation.

Specifications

Sampling
  • Two independent sampling lines
  • Flow rate: 15 – 50 l/min
  • Filter: round filters of d = 47 mm, flowing area d = 40 mm
  • Filter changer capacity: 2 x 30 filters in filter magazines plus 2 x 1 in sampling position
  • Application range: -20° to 50° C; 0 % to 95 % RH, -40° to 50° C with additional heater, 2000 amsl
Time programs
  • Work, Pause (0 to 99’999 minutes each)
  • Start time adjustable, using date and time
  • Different sampling cycles programmable
Protocol files
  • Data of filter, temperature, pressure, humidity, flow, blower load
  • Calibration history, sensor mean value record file
  • Settable averaging period 1 min – 24 h
Accuracy
  • Constancy of sample flow: <2% with calibration at 20°C, operating at -20°C-+50°C
Operating Data
  • Power supply: 230V AC / 50-60 Hz; max. 4A/360 W
  • Mean consumption: 160 W
    incl. 2 coolers (50%): 200 W
  • Cooling capacity of compressors: 360 W each
    (Option), max. power consumption 40W each
  • Mean life cycle suction unit: > 16’000 h
  • Sensors: Ambient and flow pressure, temperature, humidity, filter storage temperature
Interfaces
  • RS232C, USB, Ethernet, RS485
  • Interface protocols: DIGITEL, Bayern-Hessen, AK, TCP/IP,HTTP, FTP
  • Internal memory: 16MB, ring buffer, filter data of two years of daily sampling
Inlets
  • TSP, PM10, PM2.5 and PM1, customized inlets on request
Materials
  • Coated aluminium, stainless steel, POM, PTFE, NBR
  • Material of sampling line: EMATAL coated aluminium
Dimensions & Weight
  • Field housing (without inlet) 526 x 487 x 981 mm, protection class IP54
  • 19″ indoor housing (without inlet) 448 x 455 x 756 mm, 36 kg
Noise level
  • <50dB(A) at 1m, <32dB(A) at 8m
Sensor specifications
  • Flow sensor accuracy (calibrated): < 1 %
  • Ambient & internal pressure sensor range/ accuracy (calibrated): 300 – 1100 hPa/ ± 0.12 hPa
  • Ambient & internal temperature sensor range/ accuracy (calibrated): -40 – +65°C/ ± 0.5°C
  • Ambient & internal humidity sensor range/ accuracy: 0 – 60°C; 0 – 100 %/ ± 3 % rH
  • Filter storage temperature sensor range/ accuracy: -20 – +60°C/ ± 0.1°C

Options

  • Cooled filter storage with defrost/drainage system
  • LTE router for direct remote access
  • Text message (SMS) module for status and messages
  • Sampling controlled by external sensors (e.g.: wind sensor or particle counter)
  • Filter identification via barcode reader or RFID
  • Printer
  • Heating for inlet or filter changer
  • External meteorological data collection (e.g.: wind direction and wind controlled measurement)
  • Customer- specific functions

Documents

Product Information Digitel DPA-14 DL
